TPS22990DMLT
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS22990DMLT
Datasheet:
Description:

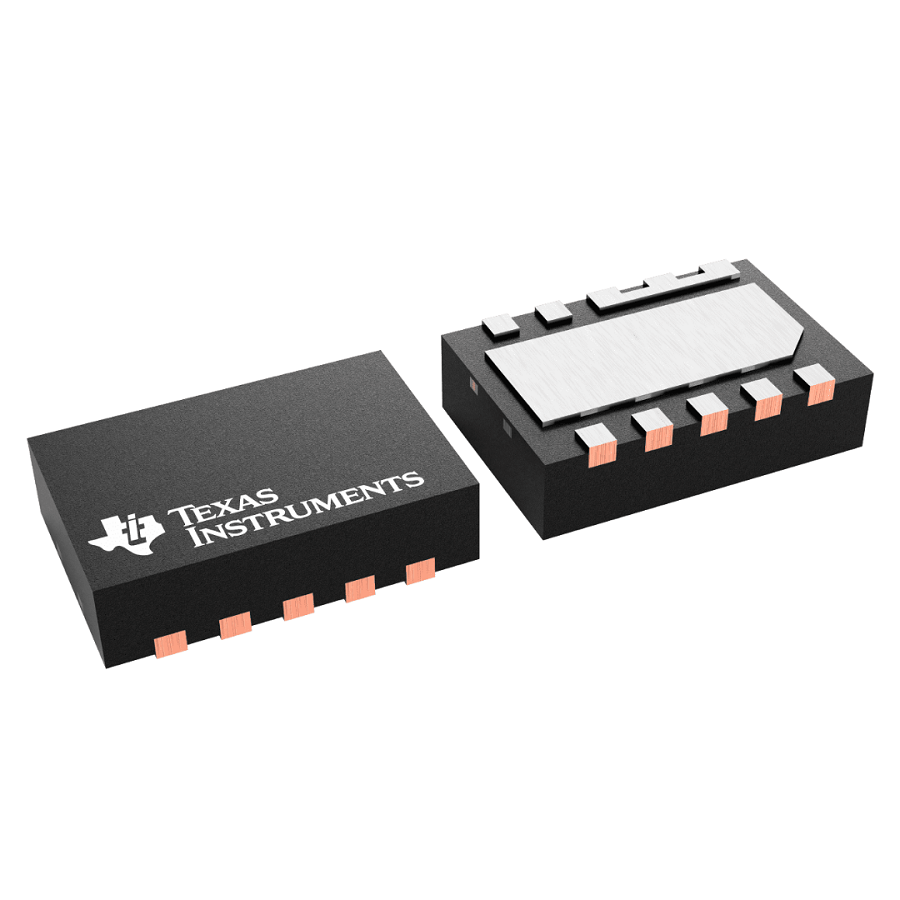

Power Switch ICs - Power Distribution WSON-10 SMD/SMT Turn-On Delay Time:34 µs Turn-Off Delay Time:5.4 µs 4.8 mΩ
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 2 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Resistance | 3.9 mΩ |
| Height | 800 µm |
| Packaging | Reel |
| Thickness | 0.75 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Load Switches |
| Interface | On/Off |
| Output Current | 10 A |
| Operating Supply Voltage | 5.5 V |
| Output Type | N-Channel |
| Lifecycle Status | Active |
| Number of Channels | 1 |
| Turn-On Delay Time | 34 µs |
| Turn-Off Delay Time | 5.4 µs |
| Number of Outputs | 1 |
| Nominal Input Voltage | 5.5 V |
| On Resistance (RON) | 4.8 mΩ |
| Ratio - Input:Output | 1:1 |
Stock: 27
Distributors
pcbx
pcbxUnit Price$1.28448
Ext.Price$1.28448
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.28448 | $1.28448 |
| 10 | $1.05322 | $10.53220 |
| 25 | $0.97739 | $24.43475 |
| 50 | $0.90702 | $45.35100 |
| 100 | $0.84172 | $84.17200 |
| 300 | $0.78112 | $234.33600 |
| 500 | $0.72488 | $362.44000 |
| 1000 | $0.69656 | $696.56000 |
